Heat pumps operate differently than gas boilers. Traditional systems use flow temperatures around seventy to eighty degrees. Heat pumps work best at forty-five to fifty-five degrees. This temperature change affects radiator output significantly.
Many homeowners discover their current radiators are too small. The sizing process involves calculations based on room heat loss, desired temperatures, and system design. This guide walks you through every step of proper air source heat pump radiator sizing.
| Section | Key Information | Action Points |
| Understanding Heat Pump Requirements | Heat pumps need larger radiators due to lower flow temperatures (45-55°C vs 70-80°C) | Assess current radiator sizes and system compatibility |
| Heat Loss Calculations | Room heat loss determines radiator size requirements; varies by insulation and room dimensions | Calculate heat loss for each room or request professional survey |
| Sizing Calculations | Use deltaT50 to deltaT20 conversion; multiply existing output by 2.5x for heat pump compatibility | Apply conversion formulas to current radiator specifications |
| Radiator Types | Double panel convectors (Type 22) offer best output; compare K2, K3 options | Select appropriate radiator type based on space and output needs |
| Room-by-Room Guide | Living rooms need 1.5-2.5kW; bedrooms 1.0-1.5kW; bathrooms require special consideration | Size each room individually based on specific heat loss |
| Installation Considerations | Wall space, pipe routing, and system balancing affect installation success | Plan installation with professional installer; consider underfloor heating alternatives |
| Cost Analysis | Radiator upgrades cost £150-£400 per unit; total system upgrade £2,000-£6,000 | Budget for necessary upgrades; explore financing options |
| Common Mistakes | Undersizing is most common error; incorrect deltaT calculations lead to poor performance | Verify all calculations; work with heat pump specialists |
Why Air Source Heat Pumps Need Different Radiator Sizing
Air source heat pumps extract warmth from outside air and transfer it indoors. This process works most efficiently at lower temperatures than traditional gas boilers. The temperature difference fundamentally changes how radiators perform in your home.
Flow Temperature Differences Between Heat Pumps and Boilers
Gas boilers typically run at flow temperatures between seventy and eighty degrees Celsius. Your radiators were sized for these high temperatures. Heat pumps achieve optimal efficiency at forty-five to fifty-five degrees.
This thirty-degree reduction seems small but dramatically impacts radiator output. A radiator produces much less heat at lower temperatures. The relationship is not linear – halving the temperature does not halve the output.
The physics involves deltaT – the difference between flow temperature, return temperature, and room temperature. Higher deltaT values mean more heat transfer. Lower flow temperatures reduce this critical difference.
Understanding DeltaT Values
DeltaT represents the temperature difference driving heat transfer. Standard radiator ratings use deltaT50 (average radiator temperature fifty degrees above room temperature). Heat pumps typically operate at deltaT20 or deltaT30. This change requires larger radiator surface area to maintain comfort.
Impact on Existing Radiator Performance

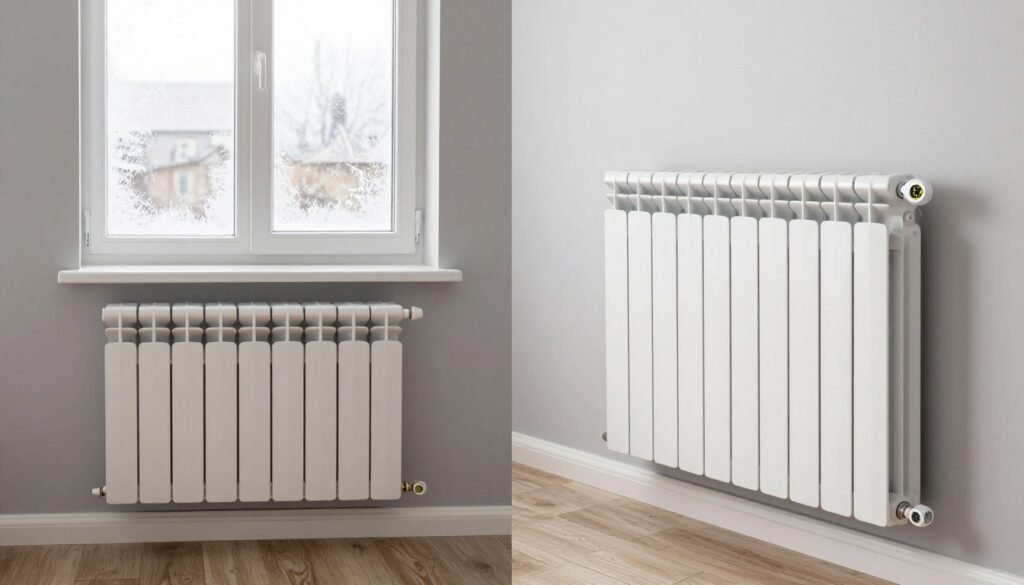

Your current radiators will still work with a heat pump. However, they produce significantly less heat at reduced flow temperatures. A radiator rated at two thousand watts with a boiler might only deliver eight hundred watts with a heat pump.
This performance drop varies by radiator type and room conditions. Single panel radiators lose more output than double panel convectors. Rooms with poor insulation experience greater heat loss, making undersized radiators more problematic.
Traditional Boiler Operation
- Flow temperature: 70-80°C
- Return temperature: 60-70°C
- DeltaT50 rating applies
- Smaller radiators sufficient
- Quick warm-up times
Heat Pump Operation
- Flow temperature: 45-55°C
- Return temperature: 35-45°C
- DeltaT20-30 rating applies
- Larger radiators required
- Longer run times for efficiency
When Radiator Upgrades Are Necessary
Not every home needs complete radiator replacement. Several factors determine upgrade requirements. Well-insulated modern homes with oversized radiators might need minimal changes. Older properties with basic single panels usually require significant upgrades.
Assessment starts with heat loss calculations for each room. Compare this to your current radiator output at heat pump temperatures. If existing output falls twenty percent below heat loss, upgrades become necessary for comfort.
Partial upgrades work for many homes. You might replace radiators in main living spaces while keeping bedroom units. Bedrooms maintain comfort at slightly lower temperatures, reducing upgrade necessity.
Quick Assessment Method: Multiply your current radiator wattage by 0.4 to estimate heat pump output. Compare this to room heat loss. If the radiator output is lower, plan for upgrades in that room.
Understanding and Calculating Room Heat Loss
Accurate heat loss calculations form the foundation of proper radiator sizing. Every room loses heat through walls, windows, floors, and ventilation. Quantifying this loss determines the heating requirement your radiator must meet.
Factors Affecting Room Heat Loss
Multiple elements contribute to total room heat loss. Wall construction and insulation levels create the primary impact. A solid brick wall loses more heat than a modern cavity wall with insulation.
Window type and size significantly affect calculations. Single glazed windows lose five times more heat than triple glazed units. North-facing rooms experience higher losses than south-facing spaces.
Ceiling height matters more than many realize. Rooms with three-meter ceilings need more heating than standard two-point-four-meter spaces. Air changes through ventilation add to the total heat requirement.
High Heat Loss Factors
- Single glazed windows
- Uninsulated solid walls
- No loft insulation
- North-facing rooms
- High ceilings above 2.7m
- Multiple external walls
- Poor draught proofing
Low Heat Loss Factors
- Triple glazed windows
- Cavity wall insulation
- 300mm loft insulation
- South-facing rooms
- Standard ceiling height
- Internal rooms
- Excellent air sealing
Moderate Heat Loss Factors
- Double glazed windows
- Partial wall insulation
- 100mm loft insulation
- East/West facing rooms
- Ceiling height 2.4-2.7m
- One external wall
- Average draught sealing
Professional Heat Loss Survey Methods
Professional installers use software to calculate heat loss accurately. These programs account for every surface area, insulation level, and temperature difference. The process takes measurements of each room dimension.
Thermal imaging cameras identify cold spots and air leakage. This technology reveals insulation gaps invisible to standard inspection. Addressing these issues before radiator sizing improves overall system efficiency.
Room-by-room surveys document construction details. Surveyors measure wall thickness, identify insulation presence, and assess window quality. They calculate U-values for each building element – the rate of heat transfer through materials.
Get Your Professional Heat Loss Survey
Accurate heat loss calculations ensure proper radiator sizing and optimal heat pump performance. Our certified engineers conduct comprehensive surveys using thermal imaging and industry-leading software.
Simple Heat Loss Estimation for Homeowners
You can estimate basic heat loss without professional software. This method provides approximate figures for initial planning. Start by calculating floor area in square meters for each room.
Multiply floor area by a heat loss factor based on insulation quality. Well-insulated modern homes use forty to fifty watts per square meter. Average insulation requires sixty to eighty watts. Poor insulation needs one hundred watts or more per square meter.
| Room Type | Good Insulation (W/m²) | Average Insulation (W/m²) | Poor Insulation (W/m²) |
| Living Room | 45-55 | 70-80 | 100-120 |
| Bedroom | 40-50 | 60-70 | 90-110 |
| Kitchen | 50-60 | 75-85 | 105-125 |
| Bathroom | 55-65 | 80-90 | 110-130 |
| Hallway | 35-45 | 55-65 | 80-100 |
Add extra capacity for specific features. Large windows increase requirements by ten to twenty percent. High ceilings add fifteen percent. Corner rooms with two external walls need twenty percent additional output.
This estimation method works for initial planning. Professional calculations remain essential for final system design. Estimation helps you understand requirements and budget before detailed surveys.
Air Source Heat Pump Radiator Sizing Calculations
Converting radiator specifications from boiler ratings to heat pump requirements involves specific calculations. Understanding deltaT values and output corrections ensures accurate sizing. These calculations prevent undersizing that leads to cold rooms.
Understanding DeltaT50 to DeltaT20 Conversion
Radiator manufacturers rate output at deltaT50 as standard. This means the average radiator temperature sits fifty degrees above room temperature. Gas boilers easily achieve this with seventy to eighty degree flow temperatures.
Heat pumps operate at lower temperatures, creating deltaT20 or deltaT30 conditions. The same radiator produces dramatically less output at these reduced temperature differences. Conversion formulas translate rated output to actual heat pump performance.
The conversion uses an exponential formula based on radiator type. Panel radiators follow a standard pattern. Multiply the deltaT50 rating by a correction factor to find deltaT20 output.
Critical Calculation Point
A radiator rated at one thousand watts at deltaT50 produces only about four hundred watts at deltaT20. This represents a sixty percent output reduction. Many homeowners underestimate this dramatic change, leading to inadequate heating.
Standard Radiator Output Correction Formulas
The standard conversion formula applies to most panel radiators. Take the rated output at deltaT50 and multiply by the correction factor. For deltaT20, multiply by approximately 0.38 to 0.42 depending on radiator type.
Double panel convectors maintain better output at lower temperatures. Single panels lose more performance. The radiator exponent value affects calculations – typically 1.3 for standard panels.
A simpler approach multiplies required heat loss by 2.5 for heat pump radiator sizing. This rule of thumb works for most residential applications. If a room needs one thousand watts of heating, install radiators rated for two thousand five hundred watts at deltaT50.
| Radiator Type | DeltaT50 Rating | DeltaT30 Output | DeltaT20 Output | Multiplication Factor Needed |
| Single Panel (Type 11) | 100% | 52% | 36% | 2.8x |
| Double Panel (Type 22) | 100% | 55% | 40% | 2.5x |
| Triple Panel (Type 33) | 100% | 56% | 42% | 2.4x |
| Column Radiator | 100% | 50% | 34% | 2.9x |
Practical Sizing Examples for Different Room Types
A living room measuring five meters by four meters has twenty square meters of floor area. With average insulation at seventy watts per square meter, heat loss totals one thousand four hundred watts. Multiply by 2.5 for heat pump sizing: three thousand five hundred watts required at deltaT50.
This might mean installing two radiators instead of one. A single large radiator measuring 1800mm wide by 600mm high might not fit the available wall space. Two smaller units totaling the required output work better.
Bedroom sizing follows the same process with lower heat loss values. A three meter by three point five meter bedroom has ten point five square meters. At sixty watts per square meter, heat loss equals six hundred thirty watts. Multiply by 2.5 for one thousand five hundred seventy-five watts needed at deltaT50.
Example Calculation: Master Bedroom
- Measure room: 4m x 3.5m = 14m²
- Assess insulation: Average quality
- Apply heat loss factor: 14m² x 65W/m² = 910W
- Add window adjustment: +15% = 1,047W
- Apply heat pump multiplier: 1,047W x 2.5 = 2,618W
- Select radiator: 1600mm x 600mm Type 22 (2,800W at deltaT50)
Bathrooms need higher output for comfort. The same calculation applies but use seventy-five to ninety watts per square meter. Bathrooms benefit from oversizing by ten percent beyond the standard calculation.
Kitchen requirements vary based on appliance heat gain. Cooking equipment adds warmth, potentially reducing radiator needs. However, kitchens still require adequate heating for comfort when not cooking. Use standard calculations without reduction.
Choosing the Right Radiator Type for Heat Pumps
Different radiator designs perform differently with heat pumps. Panel configurations, materials, and sizes affect output at lower temperatures. Selecting appropriate types maximizes efficiency and comfort while managing installation constraints.

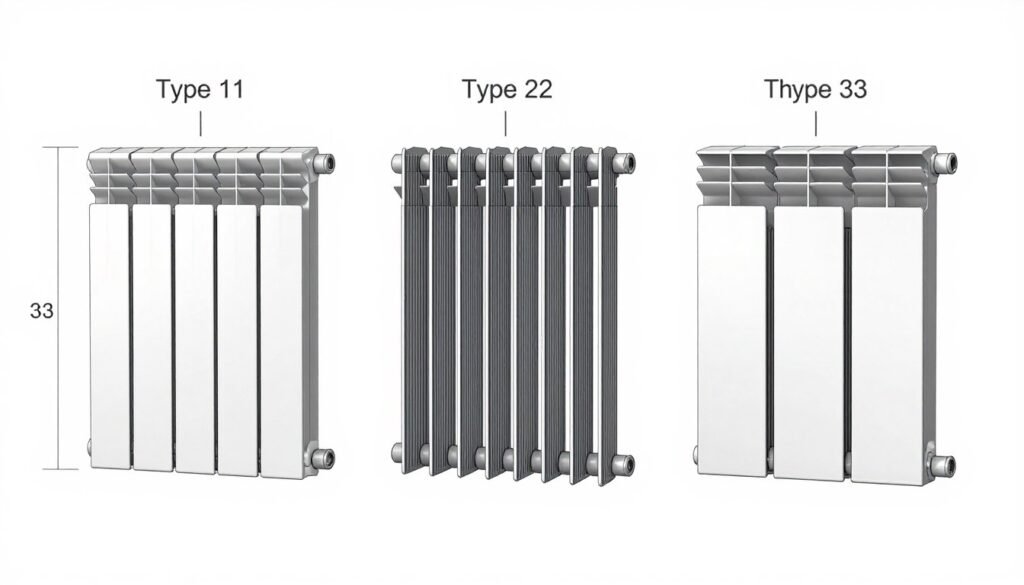

Panel Radiator Configurations
Panel radiators come in several configurations labeled by type numbers. Type 11 radiators have one panel and one convector. Type 22 features two panels and two convectors. Type 33 includes three panels and three convectors.
More panels and convectors increase surface area and heat output. Type 22 radiators offer the best balance for heat pump applications. They provide substantial output without excessive depth that limits wall mounting options.
Type 33 radiators deliver maximum output from minimal wall length. However, their depth of one hundred sixty millimeters restricts installation locations. They work well where wall space is limited but sufficient depth exists.
Type 11 (K1)
Configuration: Single panel, single convector
Depth: 50mm
Best For: Hallways, minimal space areas
Heat Pump Suitability: Limited – requires large sizes
Type 22 (K2)
Configuration: Double panel, double convector
Depth: 100-105mm
Best For: Living rooms, bedrooms, most applications
Heat Pump Suitability: Excellent – optimal balance
Type 33 (K3)
Configuration: Triple panel, triple convector
Depth: 155-160mm
Best For: Limited wall space, maximum output
Heat Pump Suitability: Good – highest output per length
Material Considerations
Steel panel radiators dominate the UK market. They offer good value and reliable performance. Steel conducts heat well and responds quickly to temperature changes. Most heat pump installations use steel panels.
Aluminium radiators heat up faster than steel. They have lower water content, reducing system volume. This can benefit heat pump efficiency. However, aluminium costs more and offers limited style options compared to steel.
Cast iron radiators work with heat pumps but require careful consideration. Their high thermal mass takes longer to heat. This contradicts heat pump preferences for responsive systems. Cast iron works best with continuous low-temperature operation rather than intermittent heating.
Low Temperature Radiator Options

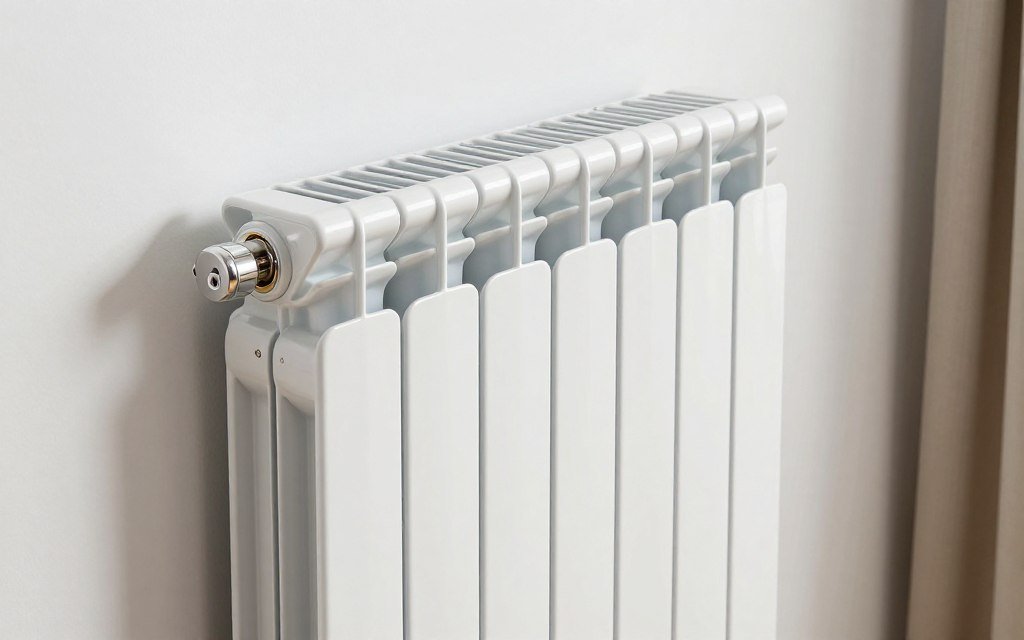

Manufacturers now produce radiators specifically designed for heat pumps. These low temperature radiators optimize surface area and convection. They deliver higher output at forty-five to fifty-five degree flow temperatures.
Some models incorporate fan assistance. Small quiet fans boost convection, increasing output by thirty to fifty percent. Fan-assisted radiators allow smaller sizes in space-constrained rooms. They require electrical connection and slight ongoing energy use.
Vertical radiators suit rooms with limited horizontal wall space. Tall designs provide necessary surface area within narrow widths. Heights range from one thousand eight hundred to two thousand four hundred millimeters. Vertical radiators work well in hallways and beside patio doors.
Low Temperature Radiator Benefits
- Enhanced convector design optimized for lower flow temperatures
- Increased surface area without excessive size
- Better heat distribution at forty-five to fifty-five degrees
- Some models achieve deltaT20 ratings up to fifty percent higher than standard radiators
- Purpose-built for heat pump efficiency
Size and Dimensional Planning
Radiator dimensions involve three measurements: width, height, and depth. Width determines the wall space required. Common widths range from four hundred to three thousand millimeters. Heights typically span from three hundred to nine hundred millimeters for horizontal models.
Larger radiators provide more output but require sufficient wall space. Measure available wall sections carefully. Account for curtains, furniture, and architectural features. Radiators need clearance – typically one hundred millimeters minimum from walls and fifty millimeters from floors.
Multiple smaller radiators sometimes work better than one large unit. Two radiators distribute heat more evenly across a large room. This approach suits open-plan spaces where a single radiator cannot effectively warm the entire area.
| Width x Height (mm) | Type 22 Output (W) at ΔT50 | Estimated ΔT20 Output (W) | Suitable Room Size (m²) |
| 600 x 600 | 1,200 | 480 | 6-8 |
| 1000 x 600 | 2,000 | 800 | 10-13 |
| 1400 x 600 | 2,800 | 1,120 | 14-18 |
| 1800 x 600 | 3,600 | 1,440 | 18-23 |
| 1200 x 700 | 2,520 | 1,008 | 13-16 |
| 1600 x 700 | 3,360 | 1,344 | 17-21 |
Consider future flexibility when selecting sizes. Slightly oversizing radiators provides margin for colder weather and allows lower flow temperatures. This improves heat pump efficiency and reduces operating costs over the system lifetime.
Room-by-Room Radiator Sizing Guide for Heat Pump Systems
Each room type has specific heating requirements and constraints. Living spaces need different output levels than bedrooms. Practical considerations like furniture placement and usage patterns affect radiator selection and positioning.

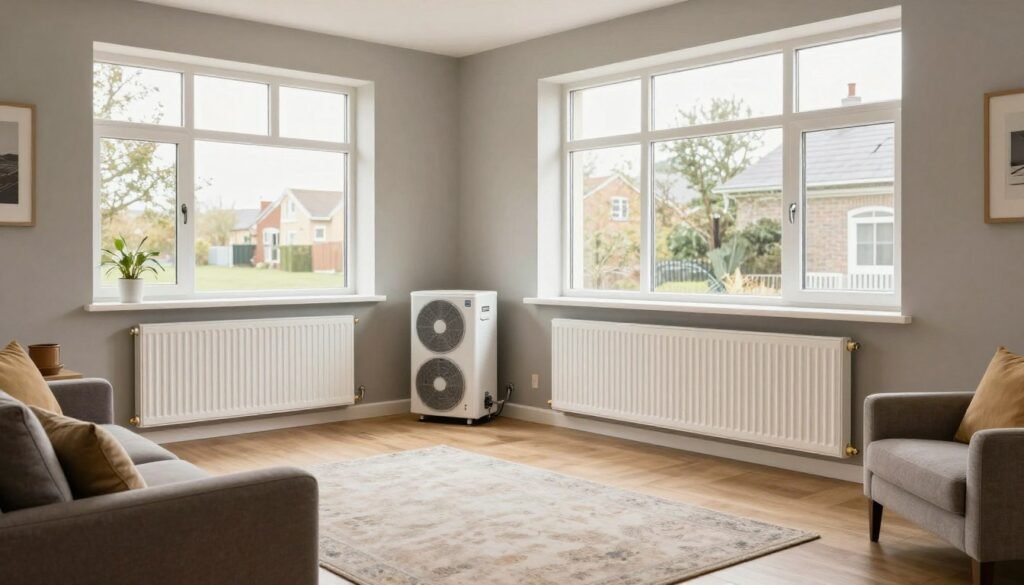

Living Room and Open Plan Space Requirements
Living rooms typically require the highest heat output in your home. These spaces maintain higher temperatures for comfort – usually twenty-one degrees. Large floor areas and multiple external walls increase heat loss substantially.
Open plan designs present special challenges. Heat distributes unevenly across combined kitchen-dining-living areas. Calculate each zone separately based on its specific heat loss. Consider installing multiple radiators to ensure even warmth distribution.
Position radiators under windows where possible. This placement counteracts cold downdrafts from glazing. Windows represent major heat loss points. Radiators beneath windows create thermal curtains of rising warm air.
Living Room Sizing Factors
- Target temperature: 20-21°C
- Typical heat loss: 70-100W/m²
- Often features large windows and patio doors
- May have two external walls
- Higher ceiling in some properties
- Extended occupation hours increase comfort priority
Recommended Radiator Specifications
- Type 22 or Type 33 panels for maximum output
- 1.5-2.5kW heat output needed (at deltaT20)
- Multiple radiators for rooms over 25m²
- Lengths of 1400-2000mm typical
- Heights of 600-700mm standard
- Consider vertical models beside patio doors
Bedroom Heating Considerations
Bedrooms maintain comfortable sleeping temperatures at eighteen to nineteen degrees. This lower target reduces heating requirements compared to living spaces. Most people prefer cooler bedrooms for sleep quality.
Master bedrooms often have ensuite bathrooms. This adds complexity to heat loss calculations. The bathroom door transfers some heat between spaces. Calculate each area separately but consider this interaction.
Radiator placement in bedrooms must avoid conflicting with furniture. Beds typically occupy the main wall space. Position radiators under windows or on walls without furniture. Vertical radiators work well in tight spaces beside wardrobes.
Master Bedroom
Size: 12-16m²
Heat Loss: 750-1,100W
Radiator Need (ΔT50): 1,900-2,800W
Typical Solution: Single 1400-1600mm Type 22
Double Bedroom
Size: 9-12m²
Heat Loss: 550-800W
Radiator Need (ΔT50): 1,400-2,000W
Typical Solution: Single 1000-1200mm Type 22
Single Bedroom
Size: 6-9m²
Heat Loss: 400-600W
Radiator Need (ΔT50): 1,000-1,500W
Typical Solution: Single 800-1000mm Type 22
Bathroom and Kitchen Specific Needs

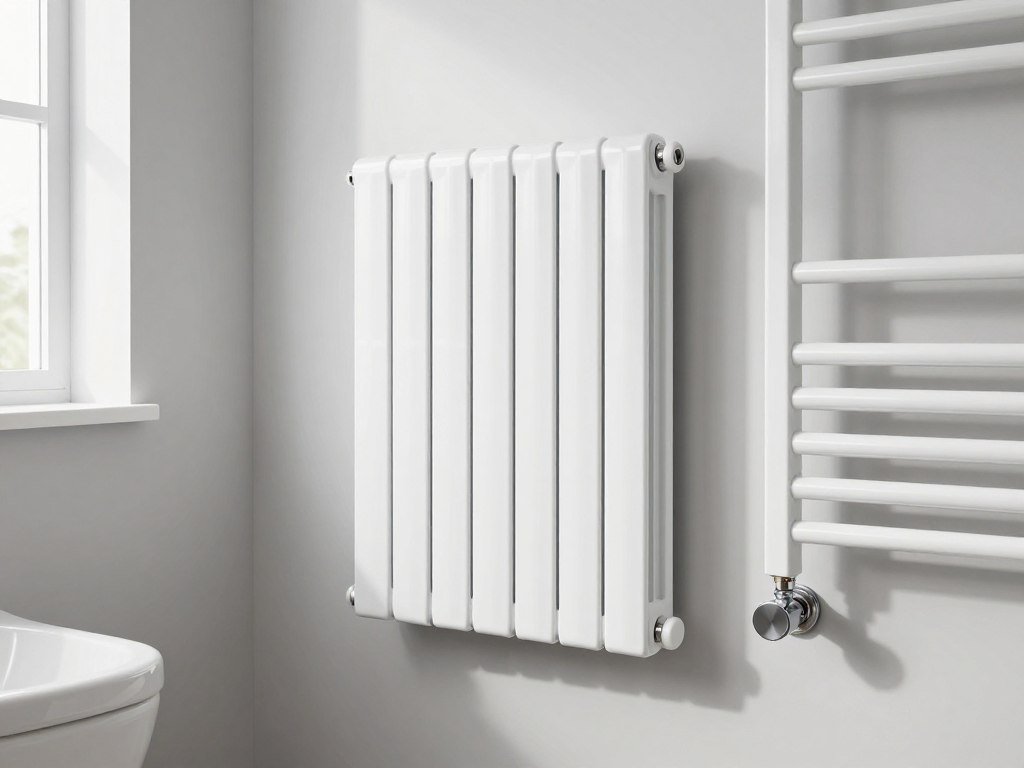

Bathrooms require higher temperatures for comfort – typically twenty-two degrees. Small floor areas deceive – bathrooms need substantial heating relative to their size. High humidity and frequent ventilation increase heat loss.
Towel radiators often provide insufficient output for heat pump systems. They perform poorly at lower temperatures. Consider standard panel radiators for primary heating with towel rails as supplements. Alternatively, use larger heated towel rails designed for heat pumps.
Kitchens benefit from heat generated by cooking appliances. However, this heat occurs intermittently. Size kitchen radiators based on full heat loss calculations without deductions for appliance gains. This ensures comfort during non-cooking periods.
Kitchen radiators face placement challenges. Cabinets occupy most wall space. Look for gaps beside appliances or in dining areas. Vertical radiators fit narrow spaces beside refrigerators or at room ends.
Bathroom Radiator Selection Tips
For a standard 2m x 2m bathroom (4m²) with average insulation, heat loss approximates 360W. Multiply by 2.5 for heat pump operation: 900W needed at deltaT50. A compact 800mm x 600mm Type 22 radiator delivers 960W at deltaT50, providing 384W at deltaT20 – slightly exceeding requirements and ensuring comfort.
Hallway and Utility Room Sizing
Hallways lose heat through exterior doors and connect multiple rooms. Cold drafts from door openings increase heating demand. Size hallway radiators to maintain eighteen degrees – adequate for circulation spaces.
Utility rooms often have exterior walls and ventilation. Boiler replacements convert these spaces to heat pump locations. The room still needs heating despite housing the heat pump. Calculate based on full heat loss including ventilation requirements.
Narrow hallways suit vertical radiators. These maximize output while minimizing wall length consumption. Heights of eighteen hundred to two thousand millimeters provide substantial surface area. Widths of four hundred to six hundred millimeters fit most hallways.
Installation Factors and System Design for Heat Pump Radiators
Proper installation goes beyond selecting correct radiator sizes. Pipe routing, system balancing, and hydraulic design affect overall performance. Professional installation ensures your heat pump system operates efficiently with new radiators.
Wall Space Assessment and Mounting Requirements
Survey every room to identify suitable radiator locations. Measure wall lengths accounting for doors, windows, and built-in furniture. Radiators need continuous clear wall sections. Mark up floor plans showing available mounting positions.
External walls provide ideal mounting positions. Placing radiators on outside walls minimizes heat loss through the building fabric. Internal walls work when external positions are unavailable but reduce overall efficiency slightly.
Check wall construction before mounting large radiators. Plasterboard walls need additional support for heavy radiators. Radiators filled with water add substantial weight. Use appropriate fixings rated for the combined weight of radiator and water.
Weight Considerations
A large 1800mm x 700mm Type 22 radiator weighs approximately forty kilograms when filled with water. Ensure wall construction and brackets support this load. Dot-and-dab plasterboard walls may need reinforcement or alternative mounting solutions.
Pipe Routing and System Hydraulics
Heat pump systems require careful pipe sizing and routing. Larger radiators need adequate flow rates to deliver their rated output. Undersized pipes restrict flow and reduce radiator performance.
Microbore piping often used with boilers may prove inadequate for heat pumps. The longer circulation times and lower temperature differences require better flow. Assess existing pipework capacity when planning radiator upgrades.
Thermostatic radiator valves control individual room temperatures. Quality TRVs suited to heat pump operation respond accurately to small temperature variations. Select TRVs designed for low temperature systems to ensure proper modulation.
Pipe Sizing Guidelines
- 15mm pipes suitable up to 3kW radiator output
- 22mm pipes recommended for larger radiators
- Minimize pipe runs where possible
- Insulate all pipework to reduce heat loss
- Use low-resistance fittings
- Maintain consistent pipe sizing throughout runs
System Balancing Requirements
- Lockshield valves on all radiators for balancing
- Balance from furthest radiator to nearest
- Aim for consistent temperature drop across all radiators
- Target 5°C temperature difference between flow and return
- Re-balance after any system changes
- Consider automatic balancing valves for complex systems
Alternatives When Radiator Upgrades Are Impractical
Some properties lack sufficient wall space for adequately sized radiators. Listed buildings may restrict visible heating changes. Underfloor heating provides an effective alternative working efficiently with heat pump low temperatures.
Retrofitting underfloor heating involves significant disruption and cost. Overlay systems add minimal height to existing floors. These sit above current floor finishes, avoiding the need to excavate. Wet systems circulate heated water through pipes. Electric systems use heating cables.
Hybrid approaches combine radiators and underfloor heating. Install underfloor systems in ground floor living spaces. Use radiators upstairs where floor construction complicates retrofit. This maximizes comfort while managing installation complexity.
Air handling systems with heat recovery suit whole-house renovations. These distribute heat via ducting rather than water pipes. Heat pump provides warmth to the air handling unit. Warm air circulates through rooms via ceiling or floor diffusers.
Space-Saving Tip: Vertical designer radiators can deliver high output in minimal wall width. A 1800mm high x 600mm wide vertical Type 22 radiator provides similar output to a 1400mm wide horizontal model while using less wall length. Consider these for narrow walls beside doors or between windows.
Cost Considerations for Heat Pump Radiator Upgrades
Budgeting for radiator upgrades forms part of overall heat pump installation planning. Costs vary based on radiator quantities, sizes, and installation complexity. Understanding price ranges helps financial planning and decision making.
Radiator Purchase Costs by Type and Size
Standard steel panel radiators offer affordable pricing. Basic Type 22 radiators cost between eighty and two hundred pounds depending on size. A typical 1400mm x 600mm Type 22 radiator retails around one hundred twenty to one hundred sixty pounds.
Premium low-temperature radiators designed specifically for heat pumps cost more. These specialized units range from two hundred to five hundred pounds per radiator. Enhanced performance may justify higher costs in critical rooms or where space is severely limited.
Designer radiators and vertical models command premium prices. Stylish options start around two hundred fifty pounds and extend beyond one thousand pounds for luxury designs. Balance aesthetic preferences against budget constraints.
| Radiator Category | Size Range | Price Range | Best Application |
| Budget Type 22 | 600-1600mm | £80-£150 | Bedrooms, utility rooms |
| Standard Type 22 | 1000-2000mm | £120-£220 | Living rooms, main spaces |
| Type 33 Compact | 600-1400mm | £140-£280 | Limited wall space areas |
| Low-Temperature Specialist | 800-1800mm | £200-£500 | Optimal heat pump performance |
| Vertical Designer | 1800-2400mm high | £250-£600 | Narrow walls, feature pieces |
| Premium Designer | Various | £400-£1200 | Architectural statement rooms |
Installation Labour and Additional Components
Professional installation costs depend on job complexity and regional rates. Straightforward radiator swaps cost sixty to one hundred twenty pounds per radiator for labour. New positions requiring pipe runs increase costs to one hundred fifty to three hundred pounds per radiator.
Additional components add to material costs. Each radiator needs valves, brackets, and bleed valves. Budget thirty to sixty pounds per radiator for quality fittings. Thermostatic radiator valves suitable for heat pumps cost twenty to forty pounds each.
System modifications may be necessary. Power flushing removes debris from existing pipework. This costs three hundred to six hundred pounds for an average home. New pipes, insulation, and system inhibitors add further expenses.
Total Project Cost Example
Three-bedroom semi-detached house requiring six new radiators: Radiators (£900), Valves and fittings (£300), Installation labour (£800), System flush and inhibitor (£400), Pipe modifications (£300). Total project cost: approximately £2,700 for complete radiator upgrade.
Long-term Energy Savings and ROI
Properly sized radiators enable heat pumps to operate at optimal efficiency. This reduces energy consumption and running costs. Heat pumps perform best with low flow temperatures. Adequate radiators allow fifty-degree operation versus sixty-degree with undersized radiators.
Lower flow temperatures improve coefficient of performance. A COP increase from 2.8 to 3.4 reduces electricity consumption by approximately eighteen percent. This translates to annual savings of two hundred to four hundred pounds for typical homes.
Calculate payback periods by comparing radiator upgrade costs against annual savings. A two thousand five hundred pound radiator upgrade saving three hundred pounds annually pays back in eight years. Factor in comfort improvements and property value increases.
Annual Running Cost Comparison
- Undersized Radiators: Heat pump runs at 60°C flow, COP 2.6, annual cost £1,400
- Properly Sized Radiators: Heat pump runs at 50°C flow, COP 3.2, annual cost £1,140
- Annual Saving: £260
- Additional Comfort Value: Consistent warmth, no cold spots
- Reduced Maintenance: Less heat pump strain extends lifespan
Financing Options and Grants
Government grants reduce heat pump installation costs. The Boiler Upgrade Scheme provides seven thousand five hundred pounds toward heat pump systems. This grant covers the heat pump itself but may not extend to radiator upgrades.
Some installers offer finance packages spreading costs over several years. Interest-free periods make upgrades more accessible. Compare total costs including interest against upfront payment savings.
Energy company obligations and local council schemes sometimes provide additional support. Eligibility varies by location and circumstances. Research available programs in your area before finalizing budgets.
Common Radiator Sizing Mistakes to Avoid
Several frequent errors compromise heat pump radiator installations. Understanding these pitfalls helps you avoid uncomfortable homes and inefficient systems. Careful planning and professional guidance prevent costly corrections.
Undersizing Radiators
The most common mistake involves installing radiators too small for heat pump operation. Homeowners apply boiler-era thinking to heat pump systems. They see their current radiator keeps the room warm and assume the same size works with a heat pump.
This assumption ignores the dramatic output reduction at lower temperatures. A radiator delivering two thousand watts at seventy-degree flow only produces eight hundred watts at fifty degrees. The room becomes uncomfortably cold.
Avoid this by always calculating based on heat pump operating temperatures. Use deltaT20 or deltaT30 output figures. Apply the 2.5 multiplication factor to heat loss calculations. When uncertain, choose the next size up.
Real Example of Undersizing Impact
A homeowner installed a heat pump keeping existing radiators sized for a boiler. The living room radiator (1200mm Type 22) delivered 2,000W with the old boiler. With the heat pump at 50°C flow, output dropped to 800W. The room’s heat loss was 1,400W. Result: living room reached only 17°C instead of desired 21°C, despite the heat pump running constantly.
Incorrect DeltaT Calculations
Confusion about deltaT values leads to sizing errors. Radiator specifications list output at deltaT50. Heat pumps operate at deltaT20 or deltaT30. Using deltaT50 ratings directly for heat pump sizing guarantees inadequate heating.
Some calculators and online tools default to boiler parameters. Always verify calculation assumptions. Confirm the tool uses appropriate temperature differences for heat pump applications. Manual calculations using proper conversion factors ensure accuracy.
Flow and return temperature assumptions affect deltaT calculations. Confirm your heat pump’s design flow temperature. Different models operate at different temperatures. Use actual design parameters rather than generic assumptions.
Ignoring Heat Loss Improvements
Installing new radiators without addressing heat loss wastes money and energy. Poor insulation, drafty windows, and missing cavity wall insulation increase heating requirements unnecessarily. Fix the building fabric before finalizing radiator sizes.
Improved insulation reduces heat loss, potentially allowing smaller radiators. A room losing one thousand five hundred watts might drop to one thousand watts with proper insulation. This saves radiator costs and reduces ongoing energy consumption.
Improvements to Consider First
- Loft insulation to 300mm depth
- Cavity wall insulation if absent
- Draft proofing around doors and windows
- Double glazing upgrades where single glazed
- External wall insulation for solid walls
- Floor insulation in suspended timber floors
Potential Heat Loss Reductions
- Loft insulation: 15-25% reduction
- Cavity wall insulation: 20-35% reduction
- Double glazing: 10-15% reduction
- Draft proofing: 5-10% reduction
- Combined improvements: 40-60% reduction possible
- Smaller radiators needed after improvements
Poor Radiator Placement Decisions
Radiator location significantly affects comfort and efficiency. Placing radiators on internal walls or in room corners creates uneven heating. Cold areas persist near windows while other zones overheat.
Furniture blocking radiators reduces effective output. Sofas against radiators trap heat behind them. Curtains covering radiators waste energy heating the window instead of the room. Plan furniture layouts considering radiator positions.
Multiple small radiators sometimes work better than one large unit. This particularly applies to L-shaped rooms or open plan spaces. Distributed heat sources prevent cold spots and improve comfort.
Neglecting System Balancing
New radiators require system balancing for optimal performance. Unbalanced systems allow excessive flow through some radiators while starving others. Rooms with restricted flow fail to reach target temperatures.
Professional installers balance systems by adjusting lockshield valves. This process ensures equal temperature drops across all radiators. Proper balancing allows the heat pump to operate at lowest possible flow temperature, maximizing efficiency.
DIY installations often skip balancing. The immediate result seems acceptable but long-term performance suffers. Invest in professional balancing or learn proper techniques if self-installing.
Working with Heat Pump Installers and Surveyors
Professional expertise ensures proper radiator sizing and installation. Heat pump specialists understand the calculations and practical considerations. Choosing qualified installers protects your investment and guarantees performance.
Selecting Qualified Heat Pump Installers
MCS certification indicates installer competence and training. The Microgeneration Certification Scheme sets standards for renewable heating installations. MCS certification is required for accessing government grants like the Boiler Upgrade Scheme.
Look for installers with specific heat pump experience. General heating engineers familiar only with boilers may lack heat pump knowledge. Ask about previous heat pump installations. Request references from past customers.
Multiple quotes enable comparison of approaches and prices. Three quotes from different installers reveal market rates and design variations. Be wary of quotes significantly below market average – these may indicate shortcuts or inexperience.
Questions to Ask Potential Installers
- Are you MCS certified for heat pump installations?
- How many heat pump systems have you installed?
- Will you conduct a full heat loss survey?
- What radiator sizes do you recommend and why?
- How will you balance the system after installation?
- What warranty do you provide on installation work?
- Can you provide references from recent heat pump customers?
The Heat Loss Survey Process
Professional heat loss surveys form the basis of accurate radiator sizing. Surveyors measure every room, document construction details, and assess insulation levels. This comprehensive approach eliminates guesswork.
Expect surveyors to spend several hours in your home. They measure room dimensions, wall thicknesses, and window sizes. Questions about wall construction type, insulation presence, and property age help calculate U-values.
Thermal imaging cameras identify insulation deficiencies and air leakage. These cameras display temperature variations across surfaces. Cold spots indicate problems requiring attention before heat pump installation.
Survey reports detail room-by-room heat loss calculations. They specify required radiator outputs at heat pump operating temperatures. Reports should include radiator recommendations with specific sizes and types.
Book Your Professional Heat Loss Survey Today
Ensure accurate radiator sizing with a comprehensive heat loss assessment from certified engineers. We use thermal imaging and industry-leading software to design your optimal heat pump radiator system. Free, no-obligation surveys available.
What to Expect During Installation
Radiator replacement typically takes one to three days depending on property size. Installers drain the existing system, remove old radiators, and prepare walls. New bracket installation ensures secure mounting.
Pipe modifications extend the work time. Moving radiator positions requires new pipework. Installers may need to lift floorboards or chase walls. Discuss these requirements during survey stage to understand disruption levels.
System filling, testing, and balancing concludes installation. Installers pressure test for leaks, then fill with water and inhibitor. Initial commissioning sets heat pump parameters. Final balancing optimizes radiator flows.
Request demonstrations of system controls and settings. Understand how to adjust room temperatures and set heating schedules. Proper control use maximizes efficiency and comfort.
Post-Installation Checks and Adjustments
Monitor system performance during the first weeks. Note any rooms struggling to reach temperature. Check radiators heat evenly across their surface. Cold spots or noises indicate problems requiring attention.
Fine-tuning may be necessary after initial operation. Installers often return for adjustments once the system runs through various weather conditions. This ensures optimal performance across the heating season.
Annual servicing maintains system efficiency. Service visits check heat pump operation, inspect radiator valves, and verify system pressure. Regular maintenance prevents problems and extends equipment lifespan.
Maximizing Efficiency with Proper Radiator Sizing
Correctly sized radiators enable heat pumps to operate at peak efficiency. This translates to lower energy bills and reduced carbon emissions. Understanding the efficiency relationship helps you appreciate proper sizing importance.
How Radiator Size Affects Heat Pump COP
Coefficient of performance measures heat pump efficiency. COP indicates how much heat the pump produces per unit of electricity consumed. Higher COP values mean better efficiency and lower running costs.
Flow temperature directly affects COP. Heat pumps achieve higher efficiency at lower flow temperatures. A heat pump might deliver COP of 3.5 at forty-five degrees but only 2.8 at sixty degrees. This represents a twenty-five percent efficiency difference.
Adequately sized radiators allow lower flow temperatures while maintaining comfort. Undersized radiators force higher flow temperatures to compensate. This reduces efficiency and increases electricity consumption substantially.
| Flow Temperature | Typical COP | Heat Output per kW Electricity | Annual Running Cost (Typical Home) |
| 45°C | 3.5 | 3.5 kW | £1,050 |
| 50°C | 3.2 | 3.2 kW | £1,150 |
| 55°C | 2.9 | 2.9 kW | £1,270 |
| 60°C | 2.6 | 2.6 kW | £1,415 |
Weather Compensation and Control Strategies
Weather compensation automatically adjusts flow temperature based on outside conditions. Mild weather requires lower temperatures. Cold weather needs higher flow. This optimization maintains comfort while maximizing efficiency.
Properly sized radiators enhance weather compensation effectiveness. Adequate surface area allows significant temperature reductions during mild periods. Undersized radiators limit reduction potential, preventing full efficiency gains.

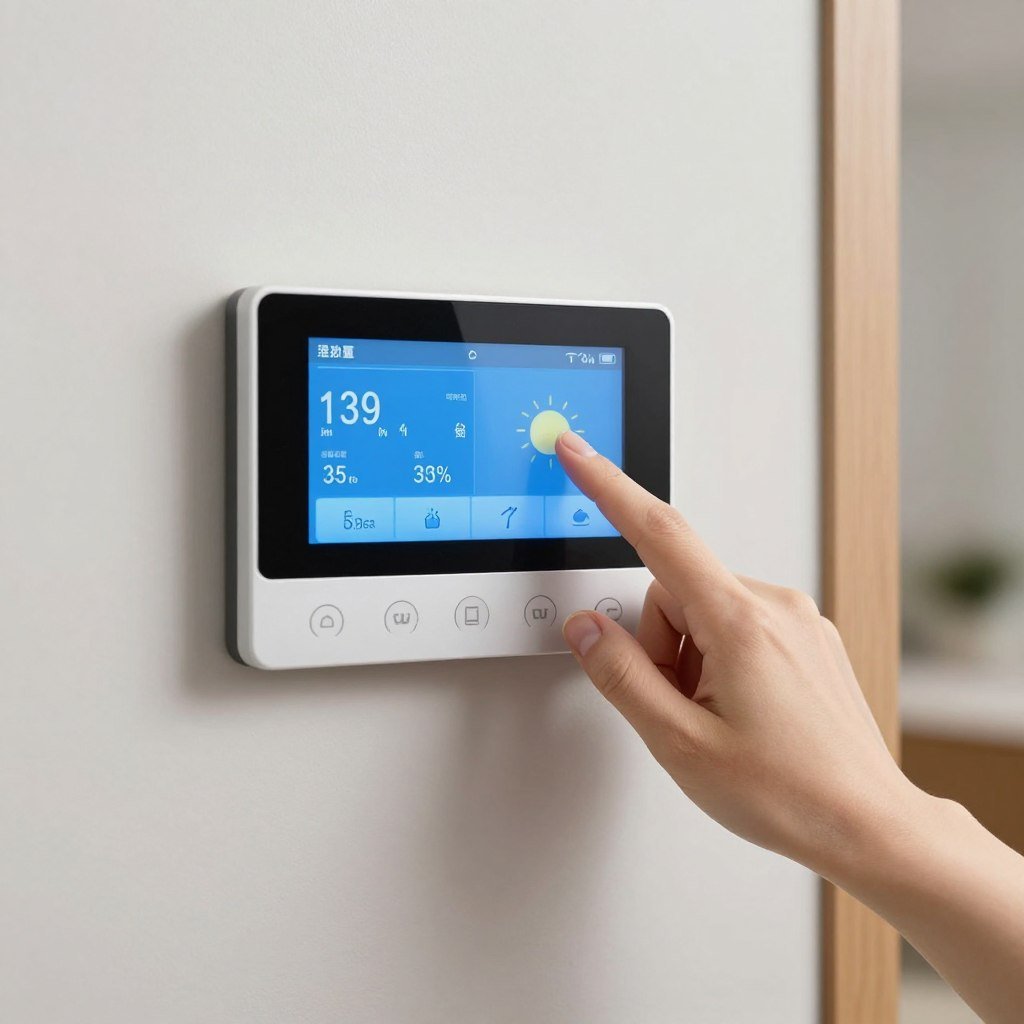

Room thermostats and thermostatic radiator valves work together for optimal control. TRVs prevent overheating in individual rooms. Central controls manage overall system operation. This layered approach balances comfort and efficiency.
Efficiency Optimization Tips
- Enable weather compensation if available
- Set flow temperature to minimum maintaining comfort
- Use quality thermostatic radiator valves
- Maintain consistent heating rather than frequent on/off cycles
- Reduce target temperatures by one degree where comfortable
- Ensure system remains properly balanced
- Bleed radiators annually to remove air
Seasonal Performance Variations
Heat pump efficiency varies seasonally. Winter operation at lower outdoor temperatures reduces COP. Summer domestic hot water production operates at higher efficiency. Annual average performance matters more than peak winter figures.
Radiator sizing should account for worst-case winter conditions. Systems sized for mild weather struggle during cold snaps. Design for temperatures around minus five degrees – typical for most UK locations.
Shoulder seasons offer peak efficiency opportunities. Spring and autumn allow very low flow temperatures. Properly sized radiators enable forty to forty-five degree operation during these periods, achieving COP above four.
Future-Proofing Your Radiator Installation
Consider future requirements when sizing radiators. Changes in property use, family size, or regulations may affect heating needs. Building in flexibility now avoids costly modifications later.
Accounting for Home Extensions and Modifications

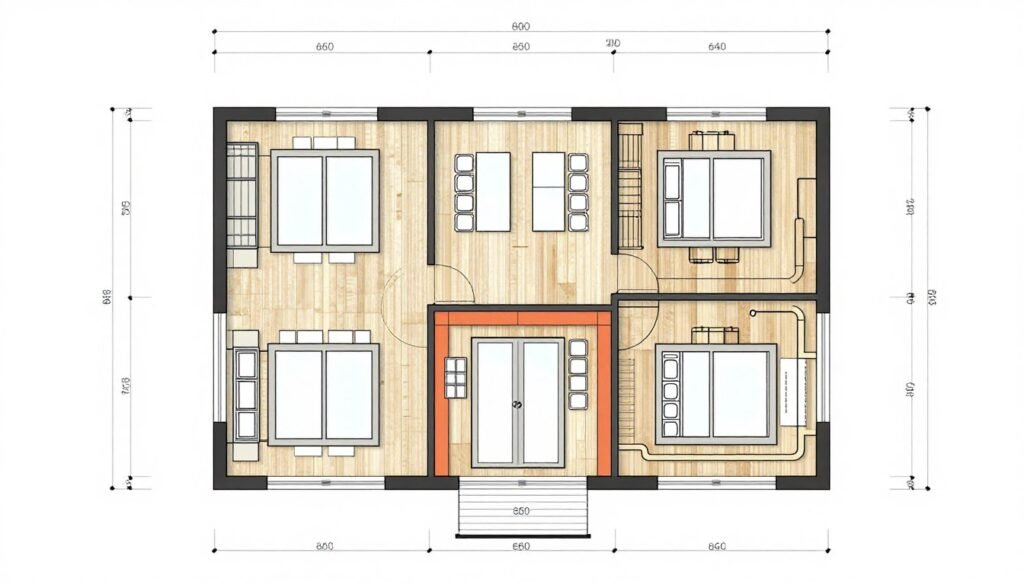

Property extensions add heated space requiring additional radiators. Consider potential extensions when designing your system. Ensure heat pump capacity and pipework can accommodate future additions.
Loft conversions create new rooms needing heating. Plan pipe routes allowing future extension to upper floors. Oversizing system components slightly provides upgrade capacity without complete replacement.
Open plan conversions combine rooms into larger spaces. This may require redistributing radiators. If planning future internal changes, discuss these during initial design.
Upgrading Insulation Impact
Improved insulation reduces heating requirements. This might make current radiators oversized. However, oversizing by ten to twenty percent causes minimal efficiency loss and ensures comfort during extreme weather.
External wall insulation particularly affects radiator sizing. If planning this improvement, consider it during radiator selection. You might choose slightly smaller radiators knowing future insulation will reduce heat loss.
Calculate heat loss both pre and post-improvement. Size radiators for the improved condition if upgrades are planned within two years. This avoids installing radiators that soon become unnecessarily large.
Regulatory Changes and Standards
Building regulations evolve toward higher efficiency standards. Future regulations may require improved insulation levels. Properties meeting current standards typically exceed minimum requirements, providing regulatory headroom.
Heat pump efficiency requirements may increase. Systems designed properly today should comply with future standards. Ensure your installation follows current best practices rather than minimum requirements.
Smart control requirements might become mandatory. Install systems with smart control compatibility. Many heat pumps now include internet connectivity for remote monitoring and control.
Frequently Asked Questions
Do I need to replace all radiators when installing a heat pump?
Not necessarily. Assessment of each radiator determines replacement need. Well-sized radiators in well-insulated rooms may work adequately. Calculate each radiator’s output at heat pump temperatures and compare to room heat loss. Replace only radiators providing insufficient output. Many homes require partial upgrades rather than complete replacement.
How much bigger do radiators need to be for air source heat pumps?
Radiators typically need 2.5 times more rated output at deltaT50 to provide the same heating with a heat pump at deltaT20. A room requiring 1,000 watts of heating needs a radiator rated approximately 2,500 watts at deltaT50 when using a heat pump. This often means larger physical radiators or adding additional units.
Can I use my existing radiators with lower heat pump temperatures?
Existing radiators will function but provide significantly reduced output. A radiator may only deliver forty percent of its rated output at heat pump flow temperatures. This works if radiators were substantially oversized originally or if you improve insulation significantly. Most homes need radiator upgrades for comfortable heating with a heat pump.
What radiator type works best with heat pumps?
Type 22 double panel convector radiators offer the best balance for heat pump applications. They provide high output relative to wall space while maintaining reasonable depth. Type 33 radiators deliver maximum output but require more wall depth. Low-temperature radiators designed specifically for heat pumps optimize performance at reduced flow temperatures.
How do I calculate the correct radiator size for each room?
Calculate room heat loss by multiplying floor area by appropriate watts per square meter based on insulation quality. Multiply this heat loss by 2.5 to find required radiator output at deltaT50. Select radiators meeting or slightly exceeding this output. Professional heat loss surveys provide most accurate calculations accounting for all factors.
Are vertical radiators suitable for heat pump systems?
Yes, vertical radiators work well with heat pumps. They provide substantial surface area in minimal wall width, ideal for narrow spaces. Ensure vertical models have sufficient total surface area to deliver required output at deltaT20. Many vertical radiators excel in hallways and beside patio doors where horizontal space is limited.
What is the cost difference between standard and low-temperature radiators?
Low-temperature radiators designed for heat pumps cost approximately fifty to one hundred fifty percent more than standard equivalents. A standard Type 22 radiator costing one hundred twenty pounds might have a low-temperature equivalent at two hundred to three hundred pounds. Enhanced efficiency and smaller size requirements may justify the premium in specific applications.
Can underfloor heating replace radiators with a heat pump?
Underfloor heating works excellently with heat pumps, operating efficiently at forty to forty-five degree flow temperatures. Retrofit installation involves significant cost and disruption. Underfloor heating suits new builds or major renovations. Hybrid approaches combine underfloor heating in main living areas with radiators in bedrooms.
How long do heat pump radiators last?
Quality steel panel radiators typically last fifteen to twenty-five years. Heat pump operation does not significantly affect radiator lifespan. Lower operating temperatures may actually extend life by reducing thermal stress. Regular system maintenance including inhibitor checks prevents internal corrosion and maximizes radiator longevity.
What happens if radiators are undersized for my heat pump?
Undersized radiators force the heat pump to operate at higher flow temperatures to maintain comfort. This reduces efficiency substantially, increasing electricity costs. Rooms may fail to reach target temperatures during cold weather. The heat pump works harder and longer, increasing wear. Proper sizing ensures comfort and optimal efficiency.
Should I oversize radiators for a heat pump?
Slight oversizing by ten to fifteen percent provides safety margin for extreme weather and allows lower flow temperatures. Excessive oversizing wastes money without significant benefit. Larger radiators cost more and consume wall space unnecessarily. Aim for accurate sizing based on heat loss calculations with modest safety margin.
How does radiator sizing affect heat pump electricity consumption?
Properly sized radiators allow five to ten degree lower flow temperatures. This improves coefficient of performance by fifteen to twenty-five percent. For a typical home, this translates to annual savings of two hundred to four hundred pounds. Correct sizing represents one of the most cost-effective efficiency improvements for heat pump systems.

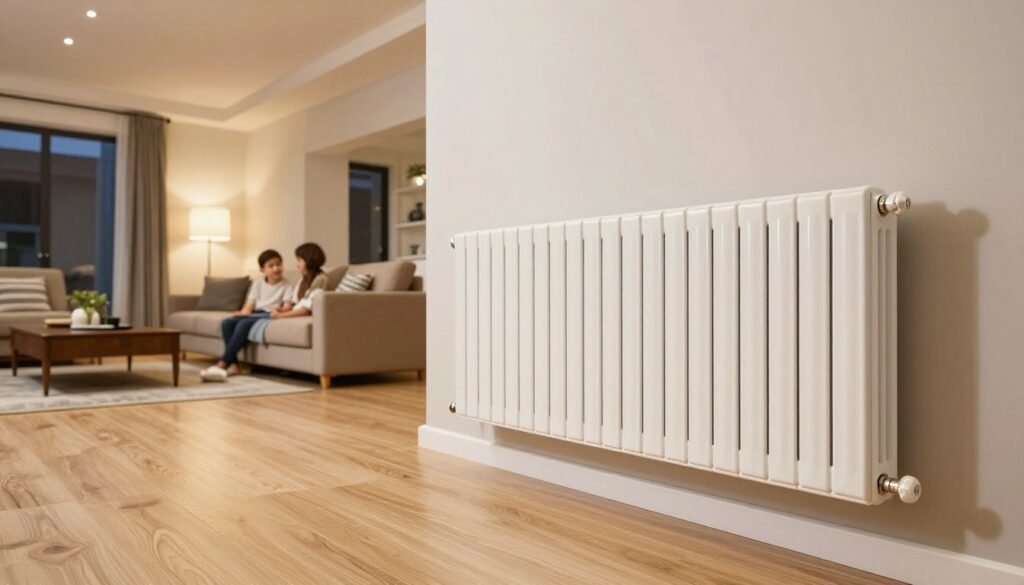

Making Informed Decisions About Heat Pump Radiator Sizing
Air source heat pump radiator sizing requires careful calculation and planning. The fundamental difference from boiler systems cannot be overlooked. Lower operating temperatures demand larger radiators to maintain comfort.
Start with accurate heat loss calculations for each room. Account for insulation quality, window types, and room usage. Apply proper conversion factors translating boiler-rated outputs to heat pump performance. The 2.5 multiplication rule provides a practical starting point.
Professional assessment delivers most reliable results. Heat loss surveys account for factors you might miss. Experienced installers bring knowledge of practical installation considerations. MCS certification ensures competence and provides access to government support.
Balance initial costs against long-term benefits. Properly sized radiators enable optimal heat pump efficiency. Lower flow temperatures reduce electricity consumption by twenty to thirty percent. This operational saving justifies radiator investment within several years.
Consider your home comprehensively. Address insulation deficiencies before finalizing radiator sizes. Improved building fabric reduces heating requirements. Combined improvements deliver maximum efficiency and comfort.
Key Takeaway: Accurate radiator sizing forms the foundation of successful heat pump installation. Invest time in proper calculations and professional surveys. The comfort and efficiency gains far exceed the planning effort required.
Future-proof your installation by considering potential home changes. Plan for extensions or loft conversions during initial design. Ensure system capacity accommodates reasonable future expansion.
The transition to heat pump heating represents a significant change from traditional systems. Understanding radiator sizing requirements positions you for successful implementation. Your home will benefit from consistent warmth, improved efficiency, and reduced environmental impact.
Take action systematically. Gather information about your current radiators and insulation. Request professional heat loss surveys. Compare multiple installer quotes. Make informed decisions based on comprehensive assessment rather than assumptions.
Well-sized radiators unlock heat pump potential. They enable the low-temperature operation delivering peak efficiency. Your investment in proper sizing pays dividends through comfortable rooms and lower energy bills for decades.
Ready to Size Your Radiators Correctly for Your Heat Pump?
Our certified heat pump specialists provide comprehensive heat loss assessments and radiator sizing services. We ensure your air source heat pump system delivers optimal comfort and efficiency with properly matched radiators.
Leave A Comment
